RARE EARTH MAGNETS.

Conveyor Width
-
- 762 – 1,524 mm
- 30 – 60 inches
Motor Power
-
- 2.2 – 4 kW
- 3 – 5 hp
Efficient and Versatile Solutions.

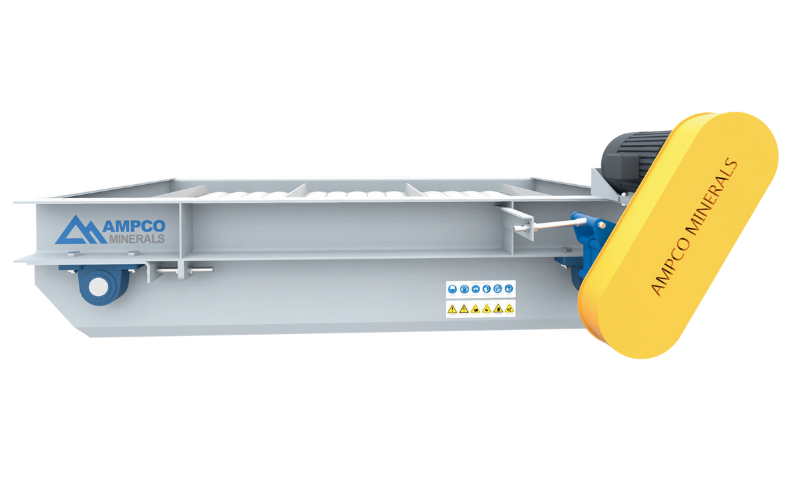

The fixed and self-cleaning permanent magnets in the Rare Earth (RE) and Rare Earth Fixed (REF) series generate a magnetic field by layering rare earth magnets in an enclosure. These magnets can separate mixed ferrous substances from non-ferrous material on conveyors and can be mounted either in line or cross-conveyor. They are generally lighter in weight than their electric counterparts, making them easier to handle and requiring less support structure when mounting.
Technical Parameter Table
Units:
Metric
Model | Conveyor Widths (mm) | Motor Power (kW) |
---|---|---|
RE30 | 762 | 2.2 |
RE36 | 914 | 4 |
RE42 | 1,067 | 4 |
RE48 | 1,219 | 4 |
RE54 | 1,372 | 4 |
RE60 | 1,524 | 4 |
Model | Conveyor Widths (mm) |
---|---|
REF30 | 762 |
REF36 | 914 |
REF42 | 1,067 |
REF48 | 1,219 |
REF54 | 1,372 |
REF60 | 1,524 |
