PAN FEEDERS.
Maximum Feed Size
-
- 500 mm
- 20 inches
Size
-
- Up to 2,400 x 5,150 mm
- Up to 94 x 203 inches
Capacity
-
- 240 – 960 mtph
- 265 – 1,058 stph
Feed Large Quantities of Granular Material Continuously and Evenly.

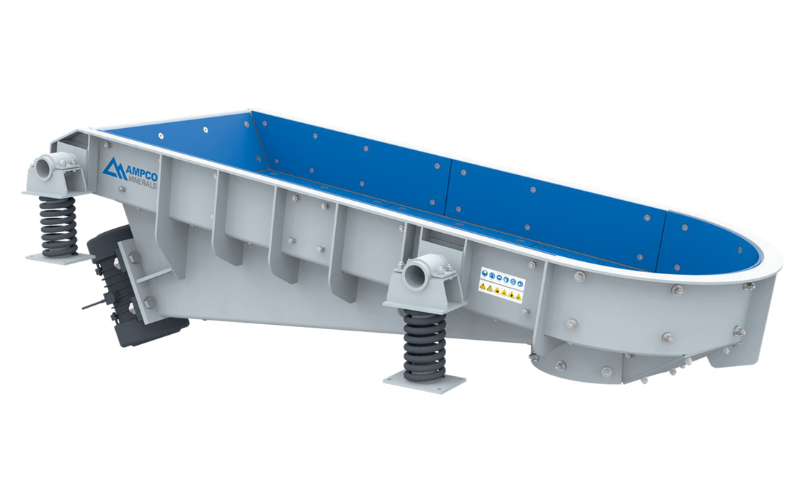

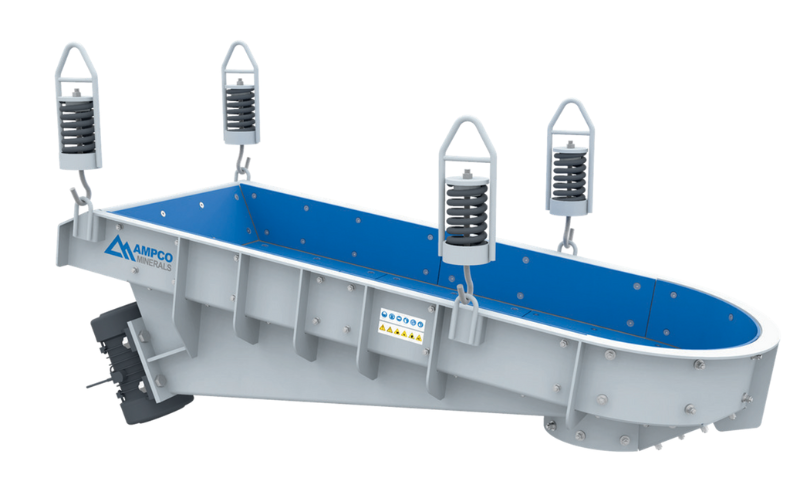

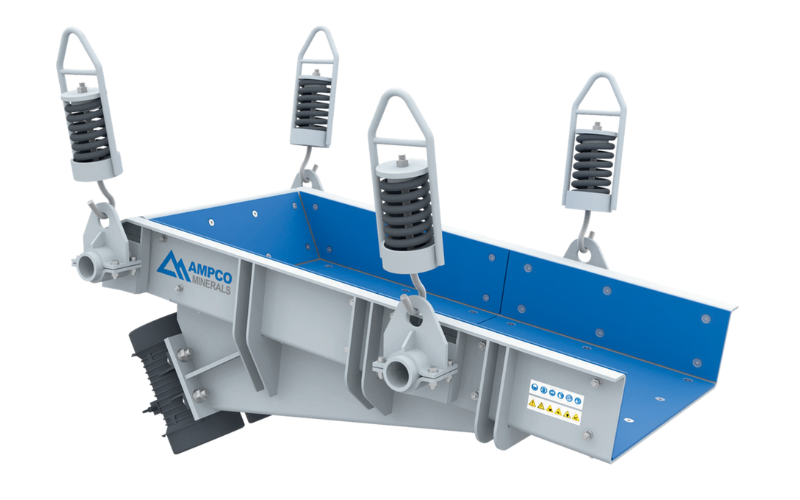

Pan feeders are versatile and can evenly, continuously, and in large quantities feed large or granular materials to downstream equipment. The PF Series Pan Feeders are compact, reliable, easy to maintain, and operate with minimal noise and power consumption. When used in conjunction with a frequency inverter, they offer an adjustable exciting force to control and alter the material flow rate. They are available in various configurations, including floor-mounted, suspended, and conical discharge pan feeders, to meet the needs of any operation.
Technical Parameter Table
Units:
Metric
| Model | Width x Length (mm) | Max Feed Size (mm) | Motor Power (kW) | Capacity (mtph) |
|---|---|---|---|---|
| PF304 | 760 x 1220 | 200 | 2 x 1.1 | 240 |
| PF305 | 760 x 1525 | 200 | 2 x 1.1 | 240 |
| PF365 | 915 x 1525 | 300 | 2 x 1.5 | 360 |
| PF366 | 915 x 1820 | 300 | 2 x 1.5 | 360 |
| PF426 | 1070 x 1820 | 330 | 2 x 2.2 | 420 |
| PF486 | 1220 x 1820 | 350 | 2 x 3 | 480 |
| PF606 | 1525 x 1820 | 400 | 2 x 3.7 | 600 |
| PF726 | 1820 x 1830 | 400 | 2 x 4.5 | 720 |
| PF7210 | 1820 x 3000 | 500 | 2 x 5.5 | 800 |
| PF9617 | 2400 x 5150 | 400 | 2 x 7.5 | 960 |
